Description

Description

SKU: 74007
EAN: 4014651440678

Scope of Delivery:
- Current clamp multimeter CM 11 0.1 mA-20 A AC, 0.1 mA-10 A DC
- Supplied with batteries (2 x type AAA), test leads and bag, for spare batteries see art. no. 4000 901 810

Product Description:
Illuminated 4-digit LCD display (6.000 dots) - precise measurement of small AC/DC currents with the highest resolution of 0.1 mA - ideal for troubleshooting in electrical systems, control systems, devices and vehicle electrics - troubleshooting and quiescent current measurement in fire alarm and intruder alarm systems - measurement of leakage, differential and leakage currents - measurement of 4 mA - 20 mA process signals without interrupting the current loop leakage currents - measurement of 4 mA - 20 mA process signals without interrupting the current loop - quiescent current measurement on vehicle batteries to check for creeping battery discharge - precise measurement of load currents up to 20 A AC/ 10 A DC - continuity test - automatic switch-off (APO after 15 min., can be deactivated) - battery undervoltage display - measured value memory (HOLD), minimum/maximum value memory (MIN/ MAX), ZERO function - measurement category CAT IV 300 V, CAT III 600 V - measuring ranges: Direct current: 0.1 mA - 10 A (measuring ranges 300.0 mA / 3.000 A / 10.00 A) Alternating current: 0.1 mA - 20 A (measuring ranges 300.0 mA / 3.000 A / 20.00 A) Voltage: 0.01 V - 600 V, resistance: 0.1 Ω - 600 kΩ

Technical Data:
- Width: 76mm
- Length: 206mm
- Pliers opening: 23mm
- Height: 33.5mmNote on the disposal of batteries and rechargeable batteries
- As we sell batteries and accumulators or devices containing batteries and accumulators, we are obliged under the Battery Act (BattG) to draw your attention to the following: The symbol of the crossed-out dustbin on batteries or accumulators means that they must not be disposed of with household waste after use. If batteries or accumulators contain mercury, cadmium or lead, you will find the respective chemical symbol (Hg, Cd or Pb) below the symbol of the crossed-out dustbin. Every user of batteries or accumulators is legally obliged to return old batteries and accumulators. You can do this free of charge at a retail outlet or other collection point in your area. You can obtain the addresses of suitable collection centres in your area from your city or local authority. For batteries that contain more than 0.0005 per cent mercury by mass, more than 0.002 per cent cadmium by mass or more than 0.004 per cent lead by mass, the chemical designations of the pollutant used can be found under the waste bin symbol. The chemical designations have the following meaning: Pb: Battery contains lead Cd: Battery contains cadmium Hg: Battery contains mercury

For commercial use, please observe the building regulations!

Read more

Product form

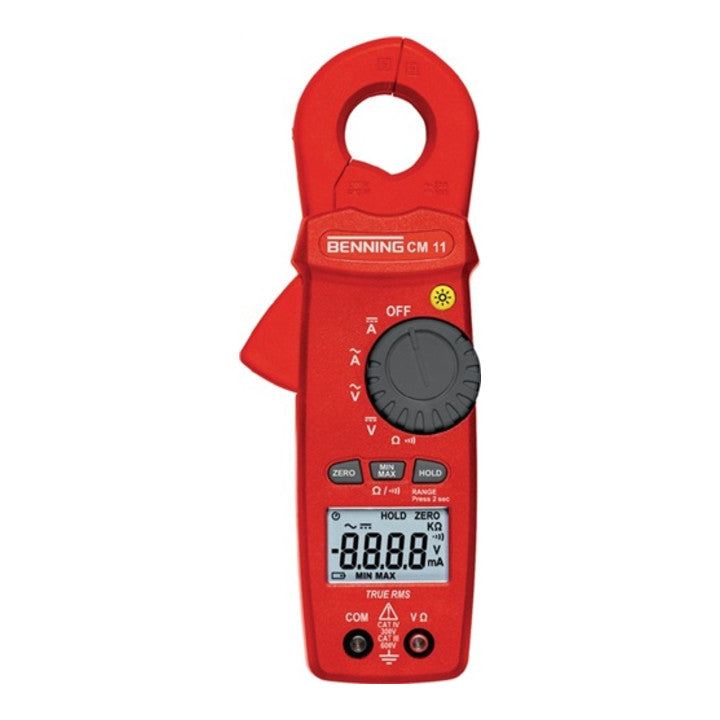

BENNING CM 11 current clamp multimeter 0.1 mA-20 A AC, 0.1 mA-10 A DC ( 4000828923 )

  • Vendor BENNING
  • condition  New
  • Unzufrieden? 100 Tage kostenfreie Retoure
€436,13
incl. VAT, plus shipping
As a member you will receive 436 BROpoints
    • American Express
    • Apple Pay
    • Google Pay
    • PayPal
    • Klarna
    • Mastercard
    • +12 weitere

    +780.000 BROs folgen uns auf

    You are €200,00 short of getting a FREE Gift
    Click on the gifts to see them

    Gift
    Gift
    Gift


    Smarte Produktberatung
    Zusammenfassung

    Here's a summary of the BENNING CM 11 current clamp multimeter: The BENNING CM 11 is a handy tool that measures small AC and DC currents with precision up to 20A and 10A respectively. It's perfect for troubleshooting electrical systems, control systems, and vehicle electrics, as well as measuring quiescent currents in fire alarm and intruder alarm systems. The key benefit of this multimeter is its ability to measure currents without interrupting the circuit, making it ideal for real-time measurements. With its illuminated 4-digit LCD display and automatic switch-off feature, this multimeter is a valuable asset for anyone working with electrical systems.
