Description

Description

SKU: 16106
EAN: 4250559935834

Package contents:

- 200x Universal Screws SPAX 5.0 x 60 mm

Product description:

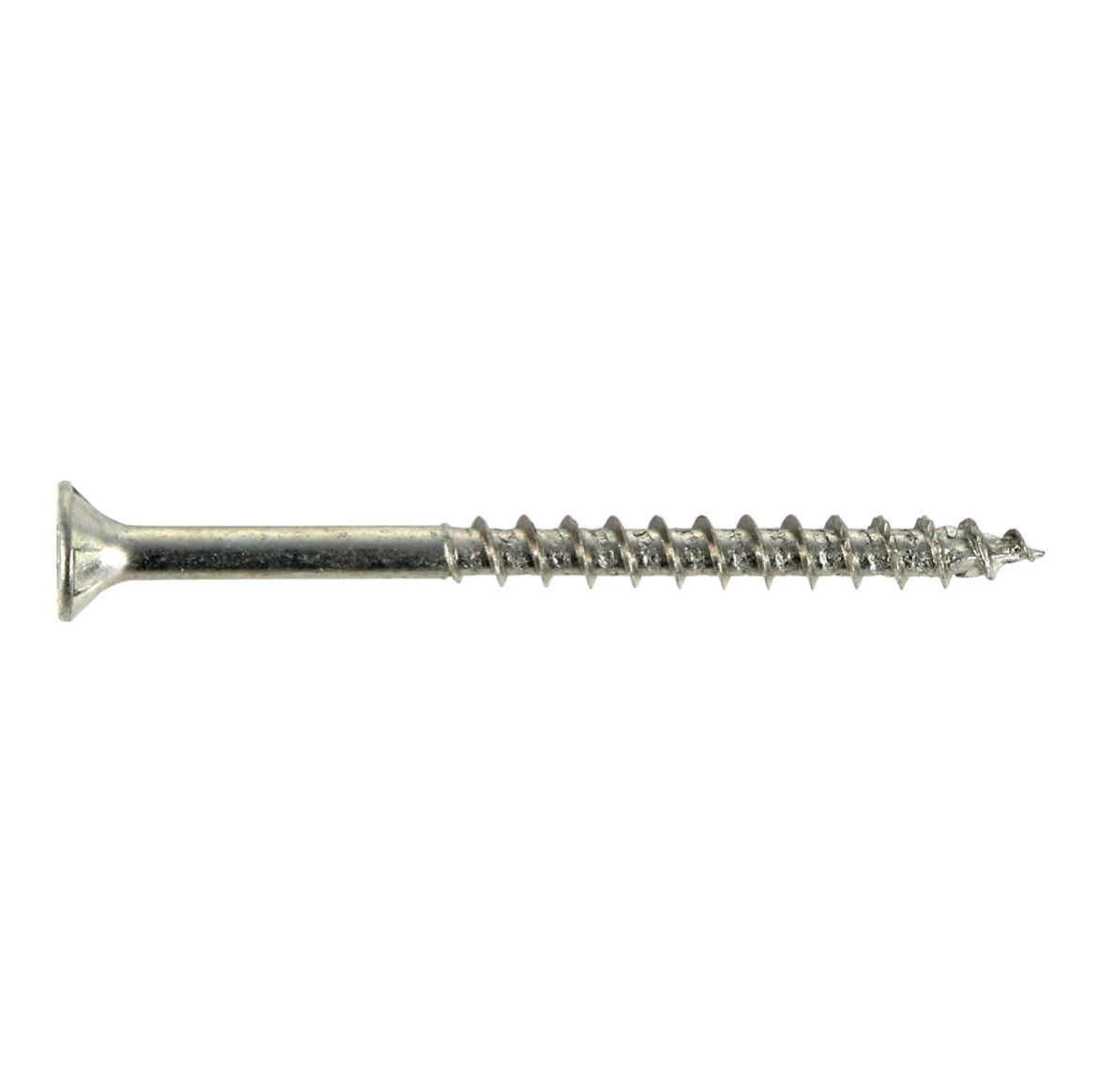

SPAX presents Multi countersunk head universal screws with T-STAR plus which guarantee greater flexibility for the user owing to their universal use for working with various materials such as wood, plastic or sheet metal. With the recessed pocket segments and the milling ribs, these handtools ensure a clean and flush countersinking of the screw in wood. Their brake ribs effectively prevent overtightening when working with metal fittings, thus creating a solid connection between the fitting and the component. Their T-STAR plus (Torx) socket allows better transmission of force to the screw, longer service life and faster threading of the screw with a better fit on the workpiece at the same time. The integrated 4CUT point allows screwing without pre-drilling (depending on the wood used), which is achieved by the square shape of the screw from the point to the transition of the thread to the shank. This 4CUT shape reduces splicing of the material and significantly reduces the screw-in torque. In addition, SPAX typical wave profile of the partial thread ensures an easy and secure screwing. The new WIROX coating from SPAX also guarantees 20 times greater corrosion protection and a significantly higher surface hardness than conventional bright zinc plating on screws, which means that the range of tasks can be extended many times over in outdoor areas. The usual 100% "Made in Germany" quality of SPAX screws is certified by an elaborate testing procedure by TÜV with proof of origin and offers a high level of safety and durability.

Technical specifications:

Finishing: WIROX
Head shape: countersunk head
Thread type: Partial thread
Force application: T-STAR plus
Blade size: Torx 10-30 (see table)

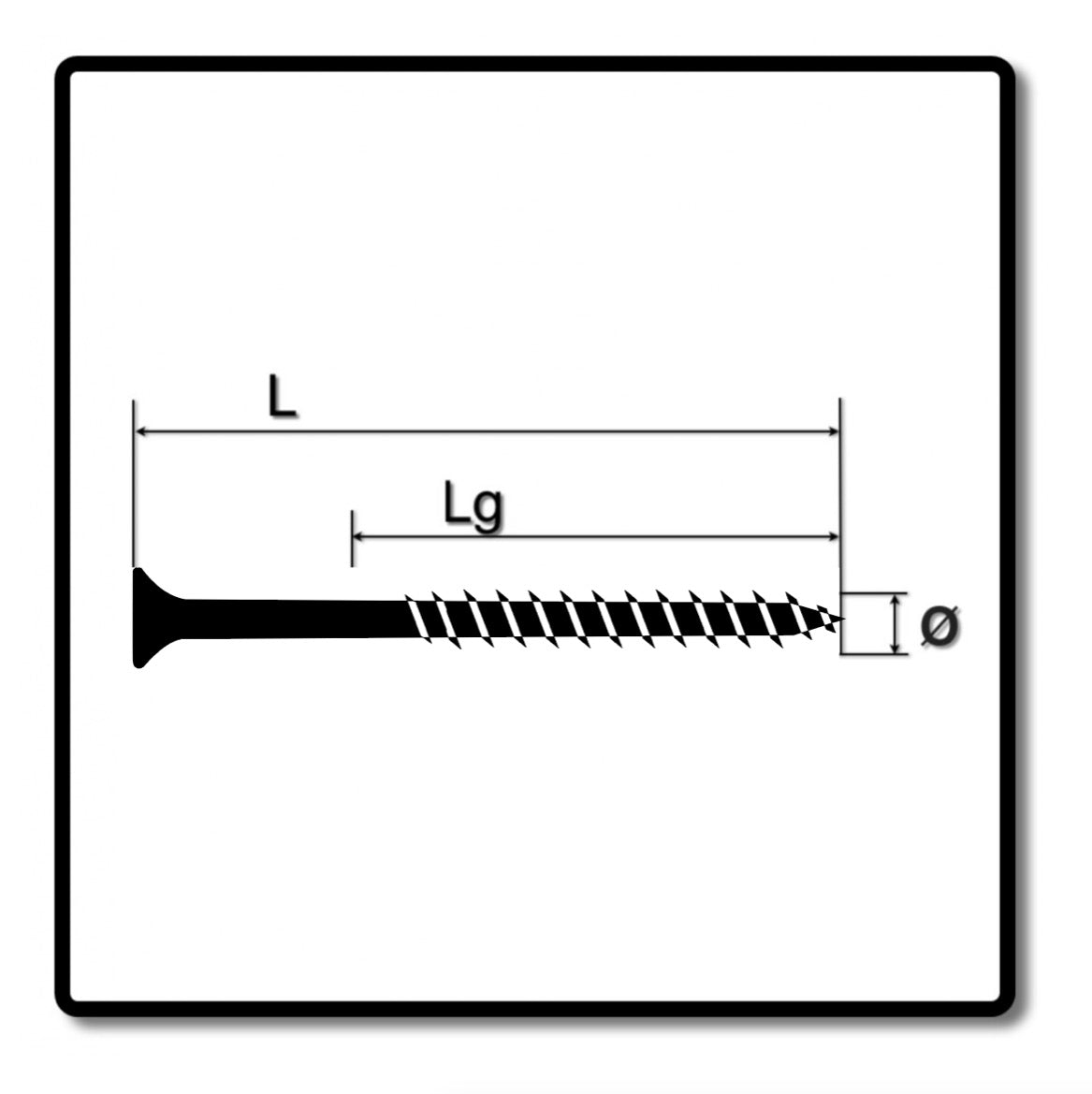

Ø in mm Length L in mm

Thread length Lg in mm

Threads

Blade size TX
3 30 18 Partial thread 10
3 35 23 Partial thread 10
3 40 23 Partial thread 10
3.5 30 18 Partial thread 15
3.5 35 23 Partial thread 15
3.5 40 23 Partial thread 15
3.5 45 30 Partial thread 15
3.5 50 32 Partial thread 15
4 30 18 Partial thread 20
4 35 23 Partial thread 20
4 40 23 Partial thread 20
4 45 30 Partial thread 20
4 50 32 Partial thread 20
4 60 35 Partial thread 20
4 70 37 Partial thread 20
4 80 37 Partial thread 20
4.5 30 17 Partial thread 20
4.5 35 25 Partial thread 20
4.5 40 25 Partial thread 20
4.5 45 30 Partial thread 20
4.5 50 32 Partial thread 20
4.5 60 37 Partial thread 20
4.5 70 42 Partial thread 20
4.5 80 47 Partial thread 20
5 30 17 Partial thread 20
5 35 25 Partial thread 20
5 40 27 Partial thread 20
5 45 30 Partial thread 20
5 50 32 Partial thread 20
5 60 37 Partial thread 20
5 70 41 Partial thread 20
5 80 46 Partial thread 20
5 90 61 Partial thread 20
5 100 61 Partial thread 20
5 120 69 Partial thread 20
6 40 24 Partial thread 30
6 50 32 Partial thread 30
6 60 37 Partial thread 30
6 70 41 Partial thread 30
6 80 46 Partial thread 30
6 90 61 Partial thread 30
6 100 61 Partial thread 30
6 110 68 Partial thread 30
6 120 68 Partial thread 30
6 130 68 Partial thread 30
6 140 68 Partial thread 30
6 150 68 Partial thread 30
6 160 65 Partial thread 30
6 180 65 Partial thread 30
6 200 65 Partial thread 30
6 220 65 Partial thread 30
6 240 65 Partial thread 30
6 260 65 Partial thread 30
6 280 65 Partial thread 30
6 300 65 Partial thread 30

Read more

Product form

SPAX Universal Screw 5.0 x 60 mm - TORX - T-STAR plus T20 - WIROX - Countersunk Head - Partial Thread - 4Cut - Tip - 200 pcs.

  • Vendor SPAX
  • condition  New
  • Unzufrieden? 100 Tage kostenfreie Retoure
€18,19
incl. VAT, plus shipping

As a member you will receive 18 BROpoints

    • American Express
    • Apple Pay
    • Google Pay
    • PayPal
    • Klarna
    • Mastercard
    • +12 weitere

    +780.000 BROs folgen uns auf

    You are €200,00 short of getting a FREE Gift
    Click on the gifts to see them

    Gift
    Gift
    Gift


    Smarte Produktberatung
    Zusammenfassung

    Get the SPAX Universal Screw 5.0 x 60 mm - TORX - T-STAR plus T20 - WIROX - Countersunk Head - Partial Thread - 4Cut - Tip with 200 screws, perfect for various materials like wood, plastic, and sheet metal. These screws feature a recessed pocket and milling ribs for easy countersinking and a secure fit. The T-STAR plus socket provides better torque transmission, longer lifespan, and faster screwing. The 4CUT point allows for screwing without pre-drilling, reducing material splicing and torque. The WIROX coating offers 20 times greater corrosion protection, ensuring a long lifespan in outdoor use.

    Rechnung, Versand & GPSR

    Versand & Rechnung durch: Dinotech e.K.

    Responsible Person for the EU (GPSR) EU-based economic operator that ensures the product complies with the necessary regulations.
    • info@spax.com
    • +4952454480
    • Germany
    • 58256 Ennepetal
    • Kölner Straße 71 - 77
    • SPAX International GmbH & Co. KG
